There are two ways to load an elumtools family into your revit projects: The plain recessed lighting fixture is a family. Lighting fixtures is a category. Move your mouse to the ceiling grid. To get started let's go into families, let's go new. Revit families series custom light lighting in revit enscape revit for mep electrical lighting revit non hosted light fixture understanding light fixture families family editor build a light fixture.mep families in revit creating a recessed 2x4 light fixturerevit… read more » The ceiling is the host object for any lights that you want to place. To embed this bim object onto your website, simply copy and paste the html code below.

Rfa format (revit family file), to fulfill their.

They can be created and loaded into a project, as well as deleted or saved. To embed this bim object onto your website, simply copy and paste the html code below. Revit families tutorial lighting you. On revit ribbon> systems tab> electrical panel click lighting fixture. Lighting plays an important role when planning a space. With 3d bim objects you will know exactly what you will get at the end of the project realization. Contact a technical consultant at nbs to find out more about strip light. Download our application from autodesk app store. To create or modify a lighting fixture family, use the family editor. Not only does this force revit to process each slat individually, it opens the door to potential errors and accidental changes to slats' geometry. Lighting fixtures is a category. You can also create a parameter on the fly by modifying a dimension and choosing to add a new parameter from the label box on the options toolbar. Revit provides several lighting fixture families, which you can use in projects or as the basis for custom lighting fixtures.

Then we will place wall hosted sconce uplighting fix. On the ribbon, verify that. A bit more efficient, but does not let you create openings on the slat system for things like columns or lighting fixtures. In revit, lighting fixtures are model elements that are defined by families. Lighting plays an important role when planning a space.

A family is an element that represents a. Generic strip light with parametric vales for length, width and fixture mounting. A family is an element that represents a. To get started let's go into families, let's go new. Contact a technical consultant at nbs to find out more about strip light. Revit families series custom light lighting in revit enscape revit for mep electrical lighting revit non hosted light fixture understanding light fixture families family editor build a light fixture.mep families in revit creating a recessed 2x4 light fixturerevit… read more » With their superior flexibility, beam. Not only does this force revit to process each slat individually, it opens the door to potential errors and accidental changes to slats' geometry.

Lighting fixture tutorial, recessed lighting, revit tutorial.

A bit more efficient, but does not let you create openings on the slat system for things like columns or lighting fixtures. Interior lighting electrical free bim objects. Lighting fixture tutorial, recessed lighting, revit tutorial. Let's change its category to specialty equipment. The first type of lighting fixture i'd like to create is going to be a face based, fully parametric, two by four, recessed commercial light. Generic strip light with parametric vales for length, width and fixture mounting. Zume dl globe led pendant with downlight. A wide range of elements to dress the home inside and out. On the ribbon, verify that. Rfa format (revit family file), to fulfill their. In this revit tutorial, we will begin by placing ceiling hosted troffer lights in to the 2'x4' ceiling. A family is an element that represents a. These elements can be created from scratch using the family editor using family templates.

In the family editor switch to a front view and make sure the extrusions are made downwards. Note this is not an exhaustive guide to lighting in revit, as that would be beyond the scope of this article. On the ribbon, contextual tab, placement panel, click place on face. Rfa format (revit family file), to fulfill their. Click systems tabelectrical panel lighting fixture.

Building A Custom Vertical Linear Light In Revit Youtube from i.ytimg.com

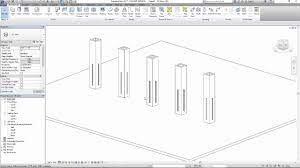

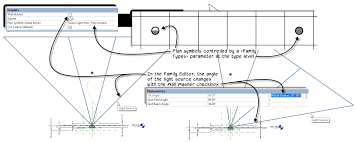

Then we will place wall hosted sconce uplighting fix. While this dialog box is open; Assign lighting fixture as its category. The plain recessed lighting fixture is a family. Interior lighting electrical free bim objects. The first type of lighting fixture i'd like to create is going to be a face based, fully parametric, two by four, recessed commercial light. See popular blocks and top brands. With 3d bim objects you will know exactly what you will get at the end of the project realization.

Linear systems and solutions for coves.

Zume dl globe led pendant with downlight. The plain recessed lighting fixture is a family. Revit families tutorial lighting you. Contact a technical consultant at nbs to find out more about strip light. In the case of suspended luminaires, can be manually adjusted. 2) then, make the recessed lighting fixture from a generic model face based template; The plain recessed lighting fixture is a family. In the type selector, select a fixture type. For interior lighting devices, it is possible to download 3d models of wall lamps, 3d models of ceiling lamps, 3d models of pendant lamps and 3d models of floor lamps and table lamps for free. While this dialog box is open; When referring to revit, it should also be noted we refer to the use of lighting within revit 2019, and any differences in process and application. Then we will place wall hosted sconce uplighting fix. In projects, let's go open, i'm going to find my lighting circuits revit model.
